IND560 PDX
Vehicle Weighing Terminal
The IND560 PDX terminal interfaces with METTLER
TOLEDO POWERCELL
®
PDX
®
load cells that feature
advanced diagnostic capabilities. The robust con-
struction of the IND560 PDX is ideally suited for the
industrial environments typical of vehicle weighing.
10,000e (OIML), 10,000d (NTEP)
Harsh environment: 265 x 160 x 170 mm
Panel mount: 265 x 160 x 92 mm
21 mm character height,
dot matrix vacuum fluorescent
3 function keys, 5 softkeys, navigation keys,
numeric keypad
Harsh environment: Stainless steel
Panel: Stainless steel, aluminum chassis
Harsh environment: IP69k
Panel mount: NEMA 4x/12 (IP65)
2 electrically isolated serial ports (COM1:
RS232/RS422 / RS485. COM4: RS232).
Optional Ethernet TCP/IP with either 1 extra serial
port and USB master OR 2 extra serial ports
Universal AC P/S
85 to 264 VAC at 49 to 61 Hz
Vehicle weighing; single and multi-material
filling, blending and dosing; over/under
checkweighing; simple weighing
QWERTY keyboard input via optional USB port.
Material transfer operations integrated into
vehicle weighing process
Optional communications interfaces: PLC (one
option only): Allen Bradley
®
Remote I/O, Ether-
Net/IP™, Profibus
®
DP; DeviceNet™, Analog
Output and Modbus
®
/TCP; Optional I/O Inter-
faces: Local: (1) 4 inputs/6 outputs, Max. 12
inputs/18 outputs. Use remote ARM100 mod-
ules, 4 inputs/6 outputs each. InSite
®
SL.
Single platform, up to 14 POWERCELL PDX
load cells
–
10,000e (OIML), 100,000d (NTEP)
Harsh environment: 200 x 299 x 235 mm
Panel mount: 220 x 320 x 105 mm
Backlit, Active TFT color graphic
320 x 240 pixels
QVGA
4 scale function keys, 5 softkeys, 4 programmable
application keys, navigation keys, numeric keypad
Stainless steel
Harsh environment: IP69k
Panel mount: IP65
Ethernet 10/100-base T, USB Master, Serial RS232
(COM1), Serial RS232 / 422 / 485 (COM2)
Universal AC P/S
100 to 240 VAC at 49 to 61 Hz
Axle-780 single-platform vehicle weighing;
Drive-780 inbound/outbound vehicle weighing
with traffic control; COM-780 legacy communications
protocols module
Udrive-780 unattended vehicle weighing solution: single-
scale inbound/outbound weighing using Temporary and
Permanent vehicle IDs ; shipping and receiving mode;
vehicle filling; up to four user-defined tables for data
accumulation; standard ticket templates; traffic control.
Optional communications interfaces: PLC (one option
only): ControlNet™, Ethernet IP, PROFIBUS
®
DP,
PROFINET, DeviceNet™, Modbus TCP. Serial (one or
two): RS232/422/485 demand or continuous format;
up to 115.7 k baud; Optional I/O interfaces: Local (2)
4 inputs/4 outputs (Relay); Solid state relay; Remote:
(8) ARM100 I/O modules, 4 in/6 out. InSite
®
SL
Up to 24 POWERCELL PDX load cells, when using exter-
nal 24VDC power supply. Up to 3 scale platforms plus
sum scale.
ATEX Category 3, USA Division 2
IECEx
IND780 PDX
Vehicle Weighing Terminal
The IND780 PDX terminal offers a choice of vehicle
weighing applications or freely-programmable cus-
tomization. Take advantage of true multi-tasking in
systems with multiple scale platforms, and leverage
data and control communications through any of a
wide array of interface options.

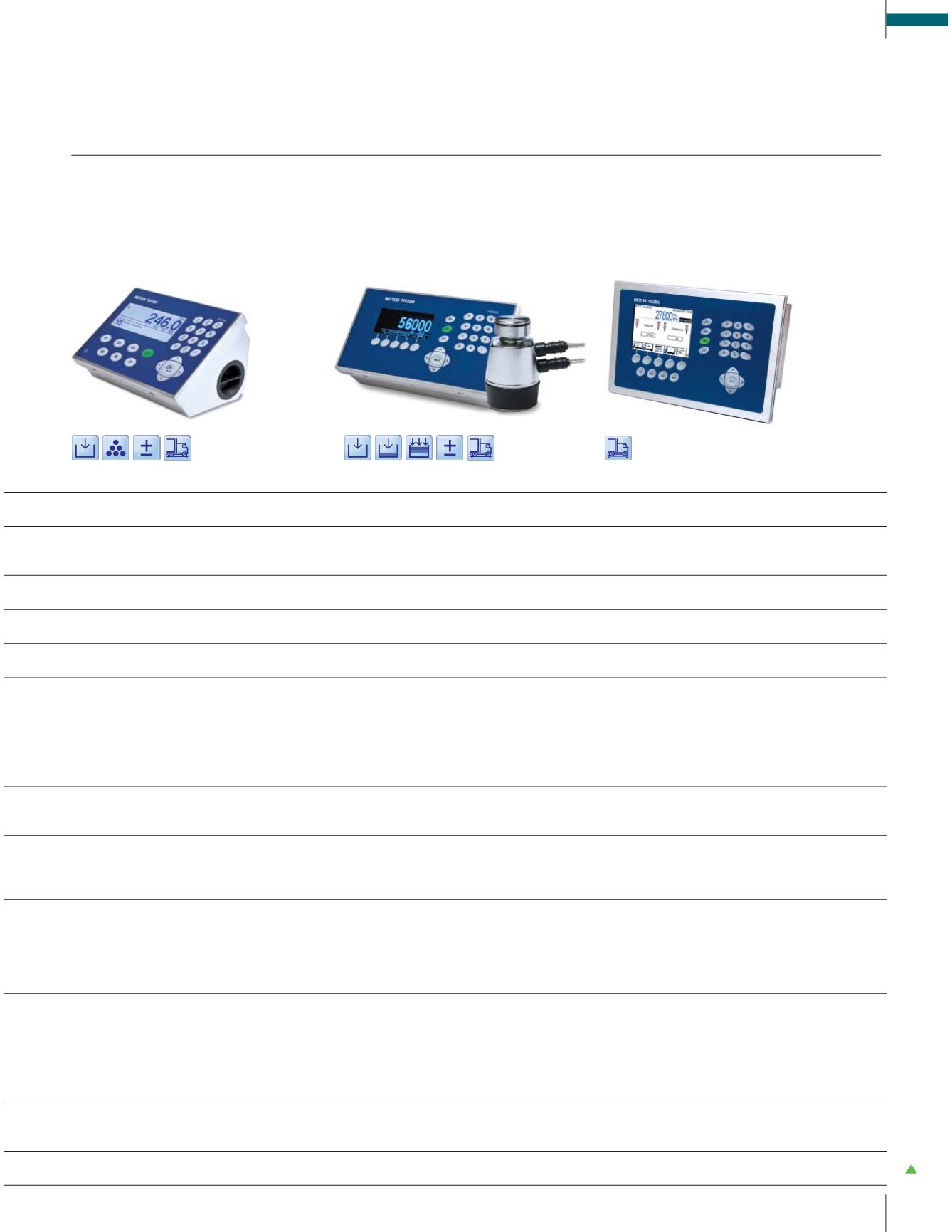

IND246 / IND246 POWERCELL
Versatile Weighing Terminal
The IND246 terminal is available with analog or
POWERCELL load cells in an AC version or ana-
log load cells in a battery-powered version, and
includes five special applications in addition to
simple weighing. Dedicated function keys simplify
operation, and the large, clear display makes infor-
mation easily readable.
6,000e (OIML), 10,000d (NTEP)
230 x 150 x 190 mm
Backlit 240 x 96 dot graphic LCD
Basic weigh mode: 27 mm character height
Application mode: 20 mm character height
7 function keys, navigations keys,
numeric keypad
Stainless steel, desktop or wall mount
IP66
Analog version:
1 electrically-isolated serial port:
RS232; optional serial port: RS232 / RS485; serial
port and D I/O interface; Ethernet TCP/IP, optional
USB interface; optional USB and D I/O interfaces.
POWERCELL version:
1 isolated RS232 / RS422,
RS485 port, optional additional isolated RS232 /
RS485, USB Ethernet TCP/IP, 10/100 Base-T port.
AC: Universal P/S
Battery: Internal NiMH battery pack
(additional external charger required)
Vehicle weighing; animal weighing;
over/under checkweighing; counting;
peak weighing; simple weighing
Vehicle application includes totalization per ID.
IND246 supports storage for up to 99 permanent
and 99 temporary (2-pass) ID records. The IND246
POWERCELL supports storage for up to 99 perma-
nent and 99 temporary (2-pass) ID records with
microSD card.
InSite
®
SL, external battery charger,
stainless steel Tilt-Swivel bracket
Single platform, 1 to 8 analog AC version, 1 to 4
analog battery version or 12 POWERCELL
®
PDX
®
version
–
