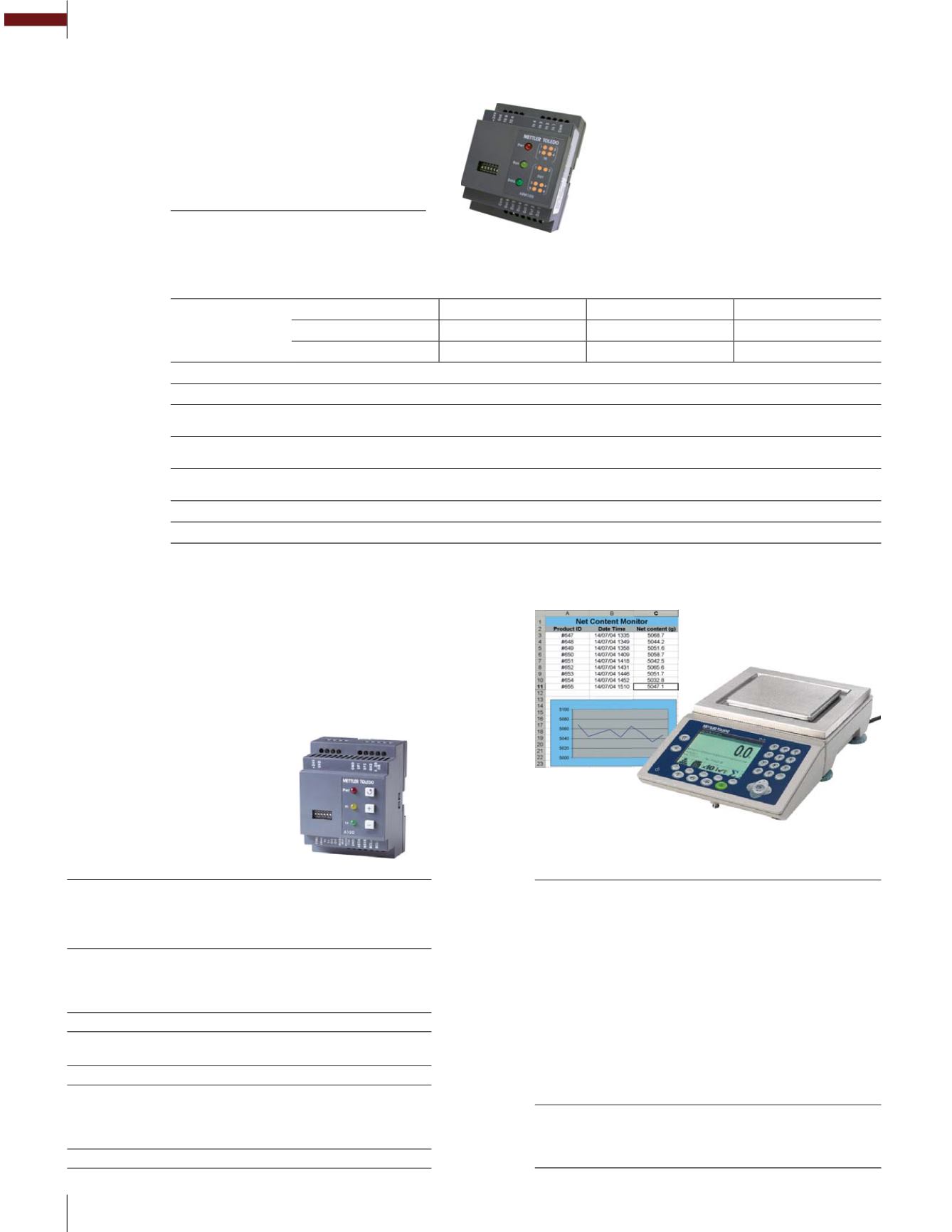

METTLER TOLEDO
Industrial Catalog 2015
Accessories
A100
Analog Output Module
Analog output module – converts serial weight data into a 4–20 mA
analog output signal.
Input Signals
RS232 (up to 9600 baud), RS485,
20 mA current loop, fiber optic.
Supports METTLER TOLEDO continuous
protocol or SICS Level 0
Output Signal
4–20 mA; 0–500 Ω impedance
Discrete Outputs
1 Input/1 Output, Open Collector,
5–25 V DC; 60 mA maximum sink current
Dimensions/Size
74×54×100 mm (W×D×H)
Enclosure Types
Standard: Plastic, DIN Rail
Optional: SS Type 4X (larger dimensions)
Optional: Cast Aluminum Type 7/9
(larger dimensions)
Power
20–28 V DC / 300 mA, UL Class2
BalanceLink
Communication Software
BalanceLink allows data communication between a variety of
METTLER TOLEDO instruments and your application program,
including MS Word™, MS Excel™, MS Access™ and many more.
Properties:
– Data transfer at the touch of a button – at a particular time
or at defined intervals
– Date and time stamp for each measurement result
– Data can be automatically written to a text file
– Customer-specific formulas for the automatic conversion
of measured values
– 5 languages: German, English, French, Spanish, Italian
– Online help
Supported Devices
– METTLER TOLEDO balances (requirement of SICS instruction set)
– Balances from third-party manufacturers (open interfaces)
– Analytical instruments and moisture detection devices
Dimensions
Enclosure
Height
Width
Depth
Module Only
2.9” (74 mm)
3.9” (100 mm)
2.2” (57 mm)
Harsh
6.3” (159 mm)
7.0” (178 mm)
2.8” (70 mm)
Mounting
N35 DIN rail mount; Optional 304 stainless steel wall mount enclosure
Power
24 V DC 140 mA, Class 2 power supply (not included)
Serial Data Input
Multi-drop RS485 interface; Module is addressable from 1 to 15; Parameters: 57,600 baud; 8 data bits,
even parity, 1 stop bit
Discrete Inputs
4 optically isolated solid state inputs; Input voltage range from 5 to 24 V DC (30 V DC at 40 mA maximum);
4 LEDs indicate input status; External voltage source and ground required
Discrete Outputs
6 normally open, dry contact relays; Contact rating: 250 V AC or 30 V DC at 1 amp maximum; Total current not to
exceed 3 amps; 6 LEDs indicate output status; External voltage source required
Applicable Terminal
IND560, IND780, IND690, IND890
Agency Approvals
c
UL
us
, CE
Add an additional remote discrete I/O to your system.
The ARM100 Remote Discrete I/O Module is designed to extend the control network of METTLER TOLEDO industrial terminals. This high per-
formance module provides four inputs and six outputs at a remote location from a compatible terminal. Digital control information is received
from the terminal on an RS485 communication link.
ARM100
Remote Discrete I/O Module
