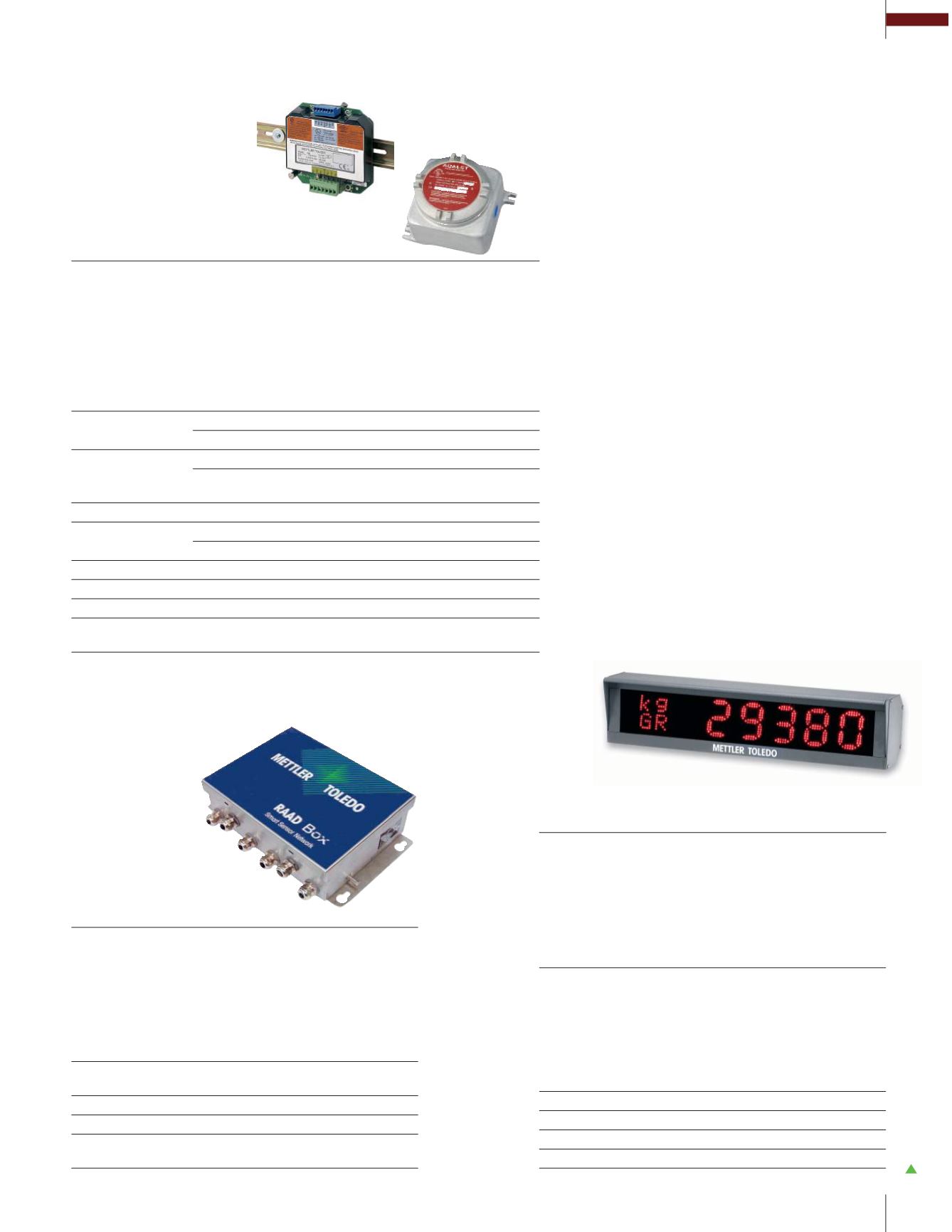

163 / 166
163
METTLER TOLEDO
Industrial Catalog 2015
Accessories
Dimensions
(W×D×H)
ISB05/15:
110×115×35 mm
ISB05x/15x:
150×195×140 mm
Construction
ISB05/15:
Covers are ABS plastic
ISB05x/15x:
Cast aluminum alloy with no more than 6% magne-
sium by weight
Operating Voltages
1–5 V DC (ISB05), 5–15 V DC (ISB15)
Environment
ISB05/15:
Dry, non-hazardous areas only
ISB05x/15x:
Within hazardous areas
Haz. Area Approval
NMi, NTEP, KEMA, FM, CSA
Housing
NEMA Type 7/9
Signal Processing
Analog
Accessories
Kit with two 3/4” NPT conduit sealing fittings, Kit with two 3/4” NPT
to 20 mm thread adapters
Active Prevention
ISB(x)
Intrinsic Safety Barrier
The ISB (Intrinsic Safety Barrier) is designed specifically for use in high accuracy/high resolu-
tion weighing applications. When installed in a load cell cable between a terminal in a safe
area and analog load cells in a hazardous area, the ISB limits the energy delivered into the
hazardous area to prevent ignition of a potentially explosive atmosphere. The ISB05 and
ISB15 are used for general purpose, safe area use, approved as [EEx ia] IIC in Europe and
AIS/I,II,III/1/ ABCDEFG in the U.S.. The ISB5X and ISB15X feature NEMA Type 7/9 flameproof
enclosures for hazardous area use, approved as EEx d IIB+H2 [ia] IIC T6 in Europe and XP/I/1/
CD T6; DIP/II,III/1/EFG T6 in the U.S.
ADI210, ADI215*, ADI310, ADI315*, ADI320**, ADI410,
ADI415*, ADI420**
*with wireless option **with traffic light
In eight sizes from 305x148x122 mm to 1,113x176x265 mm
(WxDxH)
Display
Light-emitting diodes (LED), six large
characters, Gross/Net display
Housing
Aluminum
Protection
IP56 / NEMA 4
Interfaces
Serial RS232, RS422 (multi-drop), 20 mA CL
Power
100 V AC to 240 V AC, 50/60 Hz, auto sensing
Remote Displays
For Weight Results from a Distance
Remote displays allow truck drivers and other personnel to see weights
at locations other than where the scale terminal is mounted. The bright
LED display is easy to read day and night. Three sizes of displays are
available with viewing distances of 22 to 76 m. Options include a
built-in red/green traffic light and wireless communication between the
display and the scale terminal. A durable aluminum enclosure makes
the remote displays suitable for indoor and outdoor use.
www.mt.com/industrial
Resolution
Full scale resolution of A/D 500,000
counts per cell
Dimensions
309.8×220×88.7 mm (W×D×H)
Protection
NEMA 4X enclosure
Power
Supplied from hosting terminal’s
data connection
RAAD Box™
Smart Sensor Network
With the RAAD Box™, conventional strain gauge load cell systems
can be transformed into advanced sensor networks. Instead of
analyzing the combined signal from every load cell in the system,
the RAAD Box embeds intelligence into each individual load cell,
enabling you to analyze your system at the lowest level. Failures
can be detected immediately, guarding you against costly downtime or
product waste. For use with IND780 terminal with MTX scale option only.
