METTLER TOLEDO
Industrial Catalog 2015
Sensors / Load Cells /Weigh Modules
Weigh Modules
Ensure Safety

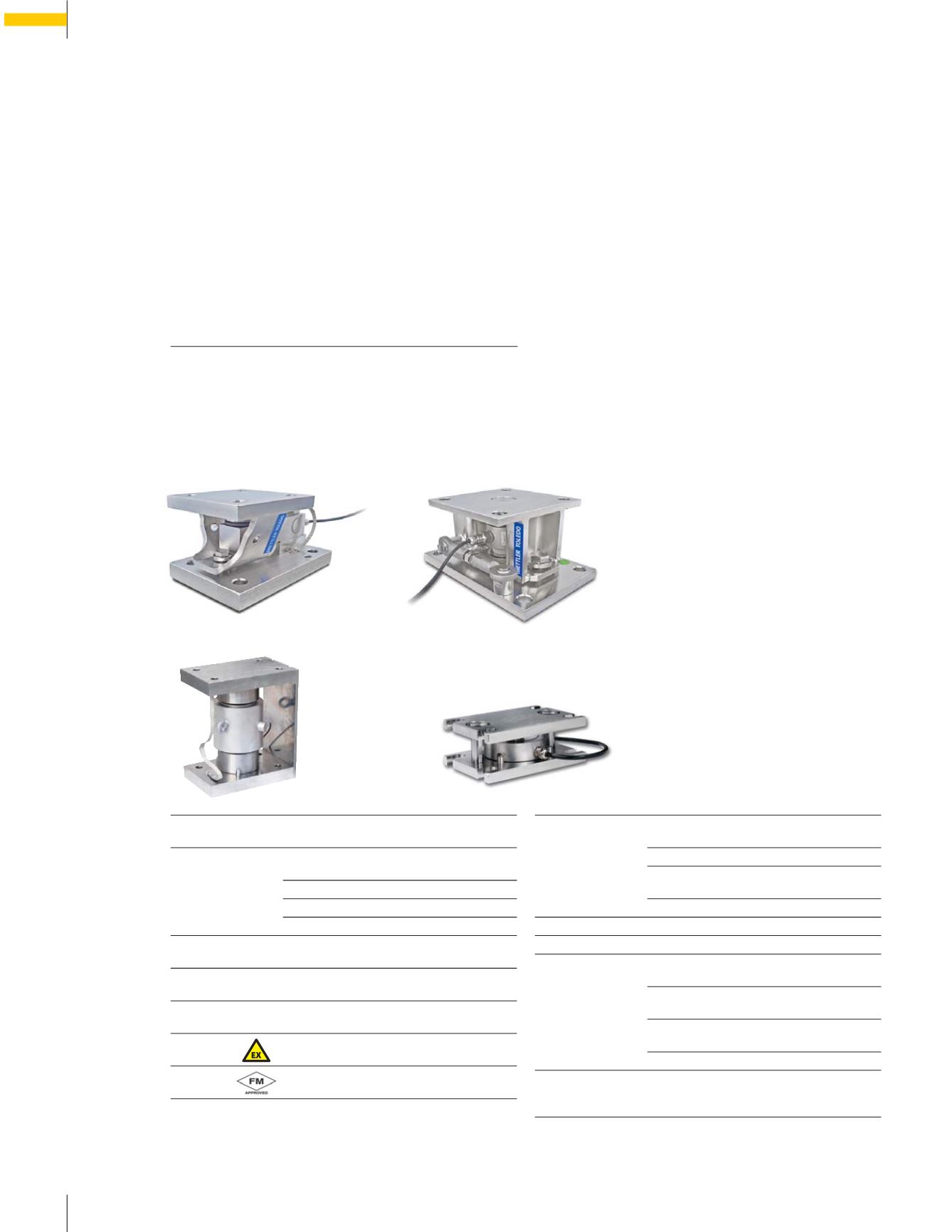

Compression Weigh Modules
Compression weigh modules enable the quick and safe conversion of a tank structure or con-
veyor system into a scale. Their high precision ensures that fill levels can be determined accu-
rately, while dispensing and formulation control are also options. Built-in side load and lift up
protection ensure that safety, performance and precision are maintained. Available in various
versions depending on the application and environment, METTLER TOLEDO weigh modules
are ideally tailored to meet your requirements.
Models
SWB505 MultiMount, 0970 RingMount,
SWC515 PinMount, 3390 GageMount
Max. Capacity
MultiMount:
5, 10, 20, 50, 100, 220, 300,
(kg/t)
550 kg, 1.1, 2.2, 4.4 t
RingMount:
250, 500 kg, 1, 2, 3.5, 5, 10 t
PinMount:
7.5, 15, 22.5, 30, 50, 100 t
GageMount:
200, 300 t
Resolution
OIML 3,000e, 6,000e, NTEP 5,000d,
10,000d (depending on model)
OIML approval
C3, C4, C6
(depending on model)
NTEP approval
NTEP IIIM 5,000d, 6,000d, IIIL 10,000d
(depending on model)
ATEX
Zone 1/2 and Zone 21/22
approval
Hazardous Assessment EN13463-1
FM/cFM
Class I, II, III Div 1&2
approval
Gagemount: Class I, II, III Div 1
Hardware Material MultiMount:
Zinc plated,
304 stainless steel, 316 stainless steel
RingMount:
316 stainless steel
PinMount:
Zinc plated, 304 stainless steel,
316 stainless steel
GageMount:
Nickel plated or stainless steel
Protection
IP68, load cells stainless steel, welded
Interfaces
Analog 2 mV/V
Applications
MultiMount:
Static tank weighing, mixers
and conveyors with optional stabilizers
RingMount:
Hygienic applications in pharma
and food sectors
PinMount:
Static tank weighing, mixers and
conveyors with optional stabilizers
GageMount:
High capacity tank weighing
Accessories
J-Boxes; Vibration and thermal isolation pads;
Dummy load cells; Dead stands;
Conduit adapters.
Mechanical Safety Features:
Safety-related mechanical fixtures
are present. Lift-protection and 360°
horizontal stops withstand high wind
and seismic forces. They also pro-
tect the weighing cell from overload.
Optional stabilizers fix the tank and
allow for high mixer torques and
short stabilization times.
